Description

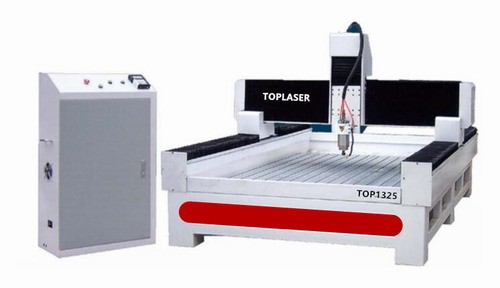

WOOD/STONE CNC CUTTING MACHINE
| Model | TOP1325 |
| Working area |
1220*2440mm |
| Spindle power | 9KW ATC |
| Inverter | 11KW |
| Drive system | WEIHONG |
| Control system | WeiHong |
| Max air move speed | 80m/min |
| Max working speed | 25m/min |
| Reponsitioning accuracy | ±0.05mm |
| Vacuum pump | 7.5KW |
| Table structure | Vacuum suction |
| Orbit | SHAC25 |
| Transmission type | Reducer |
| Tool Magazine capacity | 12/16/18 |
| Dia. of suction port | φ150mm |
| Air Pressure | 0.6-0.8Mpa |
| Working Voltage | AC380V/3PH/50Hz |
| Total power | 26KW |
