Description
THE THIRD GENERATION AVIATION ALUMINUM GANTRY
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
Technical Parameters
Machine model

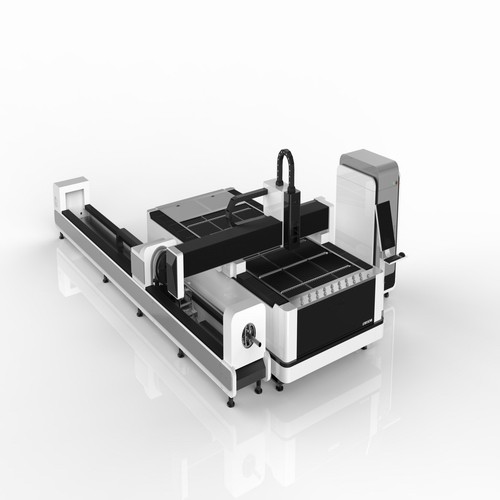

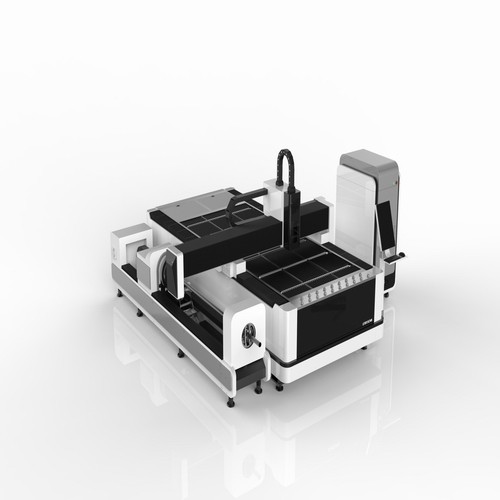

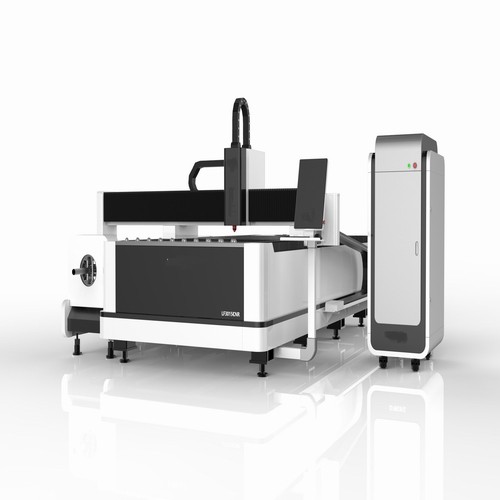

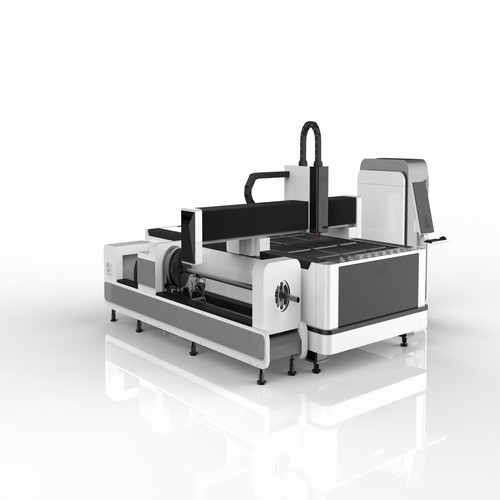

LF3015CNR
Laser power
1000W 2000W 3000W 4000W 6000W 8000W(Optional)
Dimensions
4600*2450*1700mm
Working area
3000mm x 1500mm
Repeat positioning accuracy
±0.02mm
Maximum speed
120m/min
Maximum acceleration
1.5G
Specified voltage and frequency
380V/50Hz/60Hz/60A
