Description

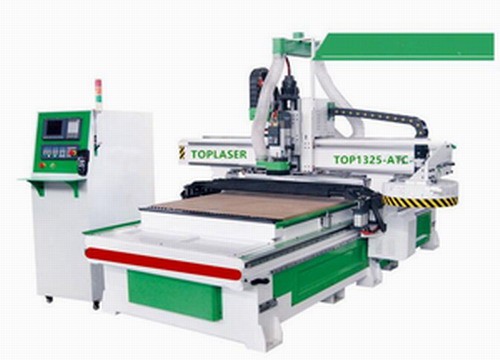

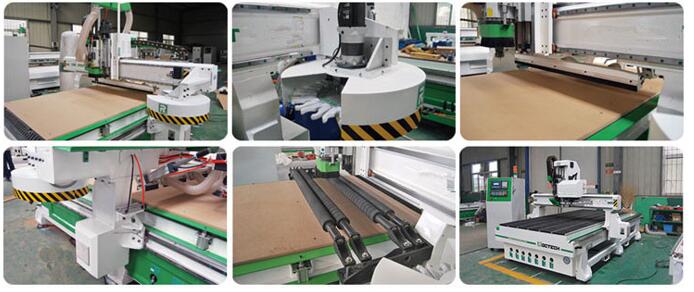

Wood MDF PVC engraving drilling machine 1325
|
Description |
Parameter |
|
|
1 |
Working area |
1300×2500mm |
|
2 |
Traveling Positioning Accuracy |
±0.03/300mm |
|
3 |
X,Y,Z Repositioning Accuracy |
±0.03mm |
|
4 |
Table Surface |
Vacuum and T-slot Combined |
|
5 |
Frame |
Welded Structure |
|
6 |
Transmission |
Rack and Pinion Drive |
|
7 |
Max. Power Consumption |
(Without Spindle) 4.5Kw |
|
8 |
Max. Rapid Travel Rate |
33000mm/min |
|
9 |
Max. Working Speed |
25000mm/min |
|
10 |
Spindle Power |
9.0KW |
|
11 |
Spindle Speed |
0-24000RPM |
|
12 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
|
13 |
Command Language |
G Code |
|
14 |
Computer Interface |
USB |
|
15 |
Flash Memory |
128M(U Disk) |
|
16 |
Collet |
ER32 |
|
17 |
X,Y Resolution |
<0.03mm |
|
18 |
Software Compatibility |
Type3/ Artcam Software |
|
19 |
Running Environment Temperature |
0 - 45 Centigrade |
|
20 |
Relative Humidity |
30% - 75% |
|
21 |
Packing Size |
3200X2100X2000mm |
|
22 |
N.W. |
1500KG |
