Description

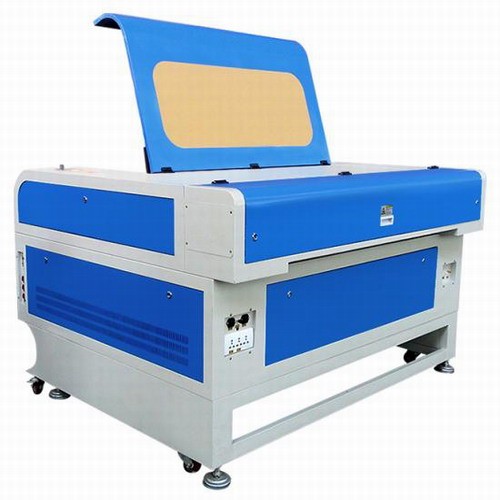

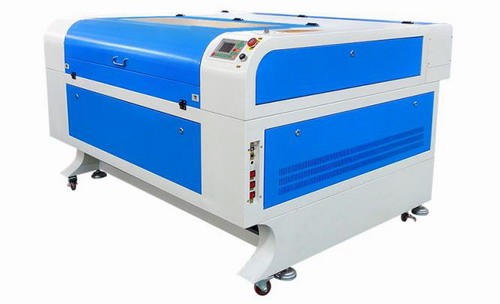

LC1390 LASER CUTTING MACHINE
The machine can automatically adjust the working table to satisfy the demands of cutting different thicknesses materials. The lifting height can reach 20CM.
Auto focusing makes the laser head focus easily and quickly. Do not need to adjust the focal length by hand, saving much time and has higher accuracy.
Technical Parameters
Laser - Type
Sealed CO2 laser tube
Laser power
80W 100W 130W 150W 200W (optional)
Cutting Area
1300mm x 900mm
Whole Machine Size
1820* 1310* 1070mm
Cutting Speed
0 - 24,000mm/min
Resetting Positioning Accuracy
±0.05mm
Working Voltage
AC 110 -220V±10%, 50-60Hz
Gross Power
<1,500W
Operating Temperature
0-45℃
Operating Humidity
5-95%
Minimum Shaping Character
English 1x1mm
Work Table
18cm lift platform
Driving System
stepper
Cooling Mode
water-cooling and protection system
Auxiliary Equipments
Exhaust-fans, air-exhaust pipe
Controlling Software
DSP control system
Compatible Software
CorelDraw AutoCAD Photoshop
